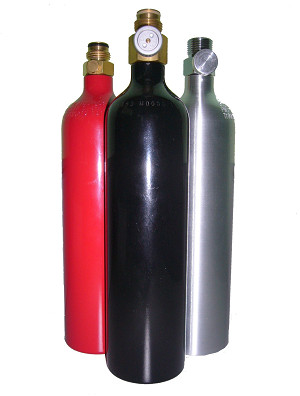

INDUSTRIAL GAS CYLINDERS

All the AMS's industrial aluminum cylinders are followed UN-TPED (ISO7866 or ISO11118) regulation and approved by the Notified Body, APRAGAZ.

Non-Refillable Cylinder

ISO11118

Product Water
Capacity		 Test
Pressure		 Working
Pressure		 Diameter Length Weight Nitrogen Capacity Oxygen Capacity Certification
ltr bar bar mm mm kgs ltr ltr UN-TPED(π) UN-DOT/TC
IAN118 1.70 104 69 89 360 0.78 118 122 v v
IAN107 1.55 104 69 89 330 0.77 107 113 v v
IAN69 1.00 104 69 89 230 0.63 69 71 v
IAN69L 1.00 104 69 74 305 0.61 69 71 v v
IAN62 0.89 104 69 74 278 0.49 62 65 v v
IAN60 0.87 104 69 74 273 0.48 60 62 v v

Refillable Cylinder

ISO7866

Product Water
Capacity		 Test
Pressure		 Working
Pressure		 Diameter Length Weight Nitrogen Capacity Oxygen Capacity Certification
ltr bar bar mm mm kgs ltr ltr UN-TPED(π) UN-DOT/TC DOT 3AL/TC 3ALM
I300 53.000 230 153 254 1445 46.10 7807 8495 v v
I285 50.200 230 153 254 1372 44.00 7394 8070 v v
I269 47.500 230 153 254 1305 42.30 6997 7617 v v
I265 46.400 230 153 254 1280 41.50 6835 7503 v v
I238 42.000 230 153 254 1170 37.90 6187 6739 v v
I227 40.000 230 153 254 1120 36.30 5893 6428 v v
I150 29.500 209 139 203 1220 23.00 3965 4248 v v
I90 15.800 230 153 184 840 15.00 2313 2549 v v
I60 10.500 230 153 184 585 10.50 1547 1699 v v
I33 5.900 230 153 175 395 6.30 869 954 v v v
I28 5.000 230 153 111 710 4.38 737 793 v
I24 4.600 209 139 111 645 3.66 621 680 v v
I18 3.200 230 153 111 480 3.10 471 510 v
I17 3.000 230 153 111 445 2.90 442 481 v
I15 2.850 209 139 111 424 2.52 384 425 v v
I12 2.300 209 139 111 354 2.20 310 340 v v
I11 2.000 230 153 102 365 2.00 295 311 v v
I10 2.000 209 139 111 318 1.85 270 283 v
I9 1.700 209 139 111 278 1.65 229 255 v v v
I7 1.400 209 139 111 240 1.45 189 198 v v v
I6 1.000 230 153 81 300 1.02 147 170 v v v
I6S 1.000 230 153 102 208 1.20 147 170 v
IL6 1.200 209 139 111 214 1.31 162 170 v v v
I4 0.700 230 153 81 216 0.75 103 113 v v v
I2S 0.400 230 153 81 135 0.50 46 57 v
I2 0.300 230 153 63 152 0.34 45 57 v
I20L 20.000 300 200 203 935 23.50 4041 4219 v v
I15L 15.000 300 200 203 735 18.40 2917 3171 v v
I10L 10.000 300 200 175 655 13.00 1954 2124 v v
IA107 1.550 104 69 89 330 0.77 107 113 v
IA69L 1.000 104 69 74 305 0.61 69 71 v
IA62 0.890 104 69 74 275 0.47 62 65 v
IA60 0.870 104 69 74 273 0.53 60 62 v
IB141 1.700 125 83 89 360 0.78 141 147 v
IB128 1.550 125 83 89 330 0.77 128 133 v
IB83 1.000 125 83 89 230 0.63 83 88 v
IC66 0.540 186 124 63 254 1.20 66 71 v v
IC49 0.400 186 124 63 200 0.90 49 54 v v
IC27 0.230 186 124 63 133 0.31 27 28 v v
ID39 0.200 310 207 50 180 0.28 39 42 v v
ID31 0.160 310 207 50 150 0.24 31 34 v v
ID29 0.150 310 207 50 140 0.23 29 31 v v
ID21 0.110 310 207 50 120 0.20 21 23 v v v
ID18 0.095 310 207 50 100 0.17 18 20 v v

Thread Size:

  • M18x1.5
  • 1-14 UNS
  • 5/8"-18UNF
  • 3/4"-16UNF


CERTIFICATIONS

GC*: AMS Global Cylinder®

  • One cylinder certified for three regions/countries
  • Cylinders are manufactured in according with ISO standards
  • USA: UN-USA
  • Canada: Acknowledge for UN-USA Approval
  • Europe: UN,π
  • Other countries on request
