PAINTBALL CYLINDERS
AMS's paintball aluminum cylinders can be divided into two types of certificates; one is DOT-3AL/TC-3ALM, and another is DOT-UN(ISO7866). Both of them are inspected and approved by our Independent Inspection Agency (IIA), Cylinder Service Inspection (CSI).

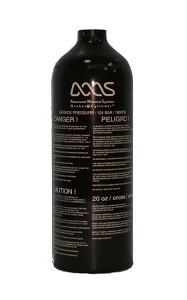

CO2 Aluminum Cylinder
| Product | Service Pressure |
Water Capacity |
Diameter | Length | Weight | Certification | ||||||||
| psi | bar | ci | ltr | in | mm | in | mm | lbs | kgs | DOT-3AL | TC-3ALM | DOT/TC-UN (ISO 7866) |
GC* | |
| 9oz | 1800 | 124 | 22.0 | 0.36 | 2.1 | 54.0 | 9.3 | 235.5 | 0.8 | 0.32 | v | v | ||
| 12oz | 1800 | 124 | 31.0 | 0.50 | 2.5 | 63.4 | 9.3 | 235.5 | 1.0 | 0.45 | v | v | v | v |
| 16oz | 1800 | 124 | 41.0 | 0.67 | 3.2 | 81.0 | 7.9 | 200.0 | 1.4 | 0.60 | v | v | v | v |
| 20oz | 1800 | 124 | 51.0 | 0.83 | 3.2 | 81.0 | 9.4 | 238.0 | 1.7 | 0.73 | v | v | v | v |
| 26oz | 1800 | 124 | 66.0 | 1.08 | 3.2 | 81.0 | 11.8 | 300.0 | 2.1 | 0.95 | v | |||
Thread Size: 0.625-18 UNF
High Pressure Aluminum Cylinder
| Product | Service Pressure |
Water Capacity |
Diameter | Length | Weight | Certification | ||||||||
| psi | bar | ci | ltr | in | mm | in | mm | lbs | kgs | DOT-3AL | TC-3ALM | DOT/TC-UN (ISO 7866) |
GC* | |
| 10ci | 3000 | 207 | 9.7 | 0.16 | 2.00 | 50.0 | 5.9 | 150.0 | 0.60 | 0.24 | v | v | v | |
| 13ci(D50) | 3000 | 207 | 13.0 | 0.21 | 2.00 | 50.0 | 7.3 | 185.0 | 0.70 | 0.29 | v | v | v | v |
| 13ci | 3000 | 207 | 13.0 | 0.21 | 2.10 | 54.0 | 6.8 | 173.0 | 0.80 | 0.33 | v | v | v | v |
| 38ci | 3000 | 207 | 38.0 | 0.62 | 3.60 | 91.2 | 7.3 | 185.0 | 2.20 | 1.00 | v | v | v | v |
| 48ci | 3000 | 207 | 48.0 | 0.79 | 3.60 | 91.2 | 8.6 | 219.5 | 2.50 | 1.14 | v | v | v | v |
| 62ci | 3000 | 207 | 62.0 | 1.01 | 3.60 | 91.2 | 10.2 | 255.0 | 2.90 | 1.31 | v | v | v | v |
Thread Size: 0.625-18 UNF

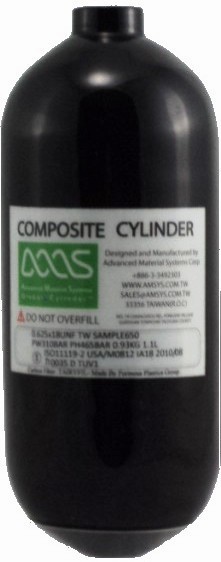

AMS's paintball composite cylinders are based on the regulation, DOT-UN(ISO11119-2). All of them are inspected and approved by our Independent Inspection Agency (IIA), Cylinder Service Inspection (CSI).
Standard High Pressure Composite Cylinder
| Product | Test Pressure |
Service Pressure |
Water Capacity |
Diameter | Length | Weight | Certification | |||||||
| psi | bar | psi | bar | ci | ltr | in | mm | in | mm | lbs | kgs | DOT/TC-UN (ISO11119-2) | GC* | |
| 48ci | 6750 | 465 | 4500 | 310 | 48.0 | 0.79 | 3.9 | 99.0 | 7.7 | 195.0 | 1.8 | 0.80 | v | v |
| 48ci(D109) | 6750 | 465 | 4500 | 310 | 48.0 | 0.79 | 4.3 | 109.0 | 7.3 | 185.0 | 1.8 | 0.80 | v | v |
| 54ci | 6750 | 465 | 4500 | 310 | 54.0 | 0.89 | 3.9 | 99.0 | 8.3 | 212.0 | 1.9 | 0.83 | v | v |
| 68ci | 6750 | 465 | 4500 | 310 | 68.0 | 1.10 | 3.9 | 99.0 | 9.8 | 250.0 | 2.1 | 0.95 | v | v |
| 68ci(D109) | 6750 | 465 | 4500 | 310 | 68.0 | 1.10 | 4.3 | 109.0 | 8.9 | 225.0 | 2.1 | 0.95 | v | v |
| 88ci(D109) | 6750 | 465 | 4500 | 310 | 88.0 | 1.40 | 4.3 | 109.0 | 10.8 | 275.0 | 3.0 | 1.32 | v | v |
| 98ci(D109) | 6750 | 465 | 4500 | 310 | 98.0 | 1.60 | 4.3 | 109.0 | 11.8 | 300.0 | 3.3 | 1.47 | v | v |
Thread Size: 0.625-18 UNF
Ultra Light High Pressure Composite Cylinder
| Product | Test Pressure |
Service Pressure |
Water Capacity |
Diameter | Length | Weight | Certification | |||||||
| psi | bar | psi | bar | ci | ltr | in | mm | in | mm | lbs | kgs | DOT/TC-UN (ISO11119-2) | GC* | |
| 48ci UL | 6750 | 465 | 4500 | 310 | 48.0 | 0.79 | 4.4 | 112.0 | 6.6 | 167.0 | 1.5 | 0.7 | v | v |
| 68ci UL | 6750 | 465 | 4500 | 310 | 68.0 | 1.10 | 4.4 | 112.0 | 8.2 | 208.0 | 1.8 | 0.8 | v | v |
| 77ci UL | 6750 | 465 | 4500 | 310 | 77.0 | 1.26 | 4.4 | 112.0 | 9.0 | 228.0 | 1.9 | 0.9 | v | v |
| 88ci UL | 6750 | 465 | 4500 | 310 | 88.0 | 1.44 | 4.4 | 112.0 | 9.9 | 252.0 | 2.1 | 0.9 | v | v |
| 98ci UL | 6750 | 465 | 4500 | 310 | 98.0 | 1.60 | 4.4 | 112.0 | 10.7 | 273.0 | 2.2 | 1.0 | v | v |
Thread Size: 0.625-18 UNF
CERTIFICATIONS
GC*: AMS Global Cylinder®
- One cylinder certified for three regions/countries
- Cylinders are manufactured in according with ISO standards
- Aluminum cylinders are manufactured in according with ISO 7866
- Composite cylinders are manufactured in according with ISO 11119-2
- USA：UN-USA
- Canada: Acknowledge for UN-USA Approval
- Europe: UN,π
- Other countries on request
last update: 2020/01/09
