MEDICAL / HEALTHCARE CYLINDERS
For the Europe and other certain countries, AMS provides another choices of cylinder specifications for medical use. All the item are followed UN-TPED regulation and approved by the Notified Body, APRAGAZ.

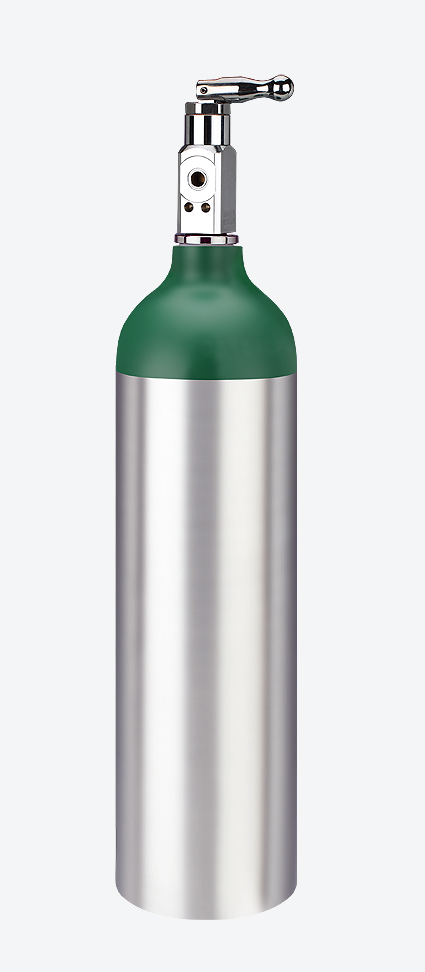

Aluminium Cylinder
UN-TPED(π) ISO7866
| Product | Water Capacity |
Test Pressure |
Service Pressure |
Diameter | Length | Weight | Oxygen Capacity |
| ltr | bar | bar | mm | mm | kgs | ltr | |
| MA0.5 | 0.5 | 300 | 200 | 81.1 | 182.0 | 0.80 | 105 |
| MA1 | 1.0 | 300 | 200 | 102.0 | 240.0 | 1.70 | 211 |
| MA1.8 | 1.8 | 300 | 200 | 102.0 | 360.0 | 2.50 | 379 |
| MA2S | 2.0 | 300 | 200 | 111.3 | 350.0 | 2.80 | 421 |
| MA2 | 2.0 | 300 | 200 | 102.0 | 390.0 | 2.70 | 421 |
| MA3 | 3.0 | 300 | 200 | 111.3 | 495.0 | 3.70 | 632 |
| MA5 | 5.0 | 300 | 200 | 140.0 | 525.0 | 6.70 | 1058 |
| MA10 | 10.0 | 300 | 200 | 175.0 | 655.0 | 13.00 | 2107 |
| MA15 | 15.0 | 300 | 200 | 203.2 | 735.0 | 18.43 | 3160 |
| MA20 | 20.0 | 300 | 200 | 203.2 | 935.0 | 23.45 | 4214 |
| MA30 | 30.0 | 300 | 200 | 254.0 | 925.0 | 37.90 | 6321 |
| MA40 | 40.0 | 300 | 200 | 254.0 | 1190.0 | 47.40 | 8428 |
Thread Size: 17E/25E
Composite Cylinder
Type II Composite Cylinder
EN-TPED(π) EN12257
| Product | Water Capacity |
Test Pressure |
Service Pressure |
Diameter | Length | Weight | Oxygen Capacity |
| ltr | bar | bar | mm | mm | kgs | ltr | |
| MB2L | 2.00 | 450 | 300 | 100.0 | 400.0 | 2.10 | 605 |
| MB2 | 2.00 | 450 | 300 | 101.0 | 390.0 | 2.10 | 605 |
Thread Size: 17E/25E
Type III Composite Cylinder
UN-TPED(π) ISO11119-2
| Product | Water Capacity |
Test Pressure |
Service Pressure |
Diameter | Length | Weight | Oxygen Capacity |
| ltr | bar | bar | mm | mm | kgs | ltr | |
| MC0.8S | 0.79 | 450 | 300 | 109.0 | 185.0 | 0.80 | 242 |
| MC0.8 | 0.79 | 450 | 300 | 99.0 | 196.0 | 0.80 | 242 |
| MC0.9 | 0.89 | 450 | 300 | 99.0 | 212.0 | 0.83 | 272 |
| MC1 | 1.00 | 450 | 300 | 99.0 | 235.0 | 0.86 | 302 |
| MC1.1S | 1.10 | 450 | 300 | 109.0 | 225.0 | 0.95 | 332 |
| MC1.1 | 1.10 | 450 | 300 | 99.0 | 250.0 | 0.95 | 332 |
| MC1.4 | 1.44 | 450 | 300 | 109.0 | 275.0 | 1.32 | 435 |
| MC1.5 | 1.50 | 450 | 300 | 99.0 | 325.0 | 1.20 | 453 |
| MC1.6 | 1.60 | 450 | 300 | 109.0 | 300.0 | 1.47 | 484 |
| MC2 | 2.00 | 450 | 300 | 109.0 | 365.0 | 1.70 | 605 |
| MC2L | 2.00 | 450 | 300 | 101.0 | 386.0 | 1.30 | 605 |
| MC3 | 3.00 | 450 | 300 | 115.0 | 425.0 | 1.80 | 908 |
| MC5 | 5.00 | 450 | 300 | 160.0 | 412.0 | 3.40 | 1507 |
| MC6.8L | 6.80 | 450 | 300 | 160.0 | 524.0 | 3.90 | 2056 |
| MC9 | 9.00 | 450 | 300 | 176.0 | 563.0 | 5.10 | 2343 |
| MC10 | 10.00 | 450 | 300 | 176.0 | 620.0 | 5.40 | 2704 |
Thread Size:
- 17E
- M18x1.5
last update: 2021/05/21
